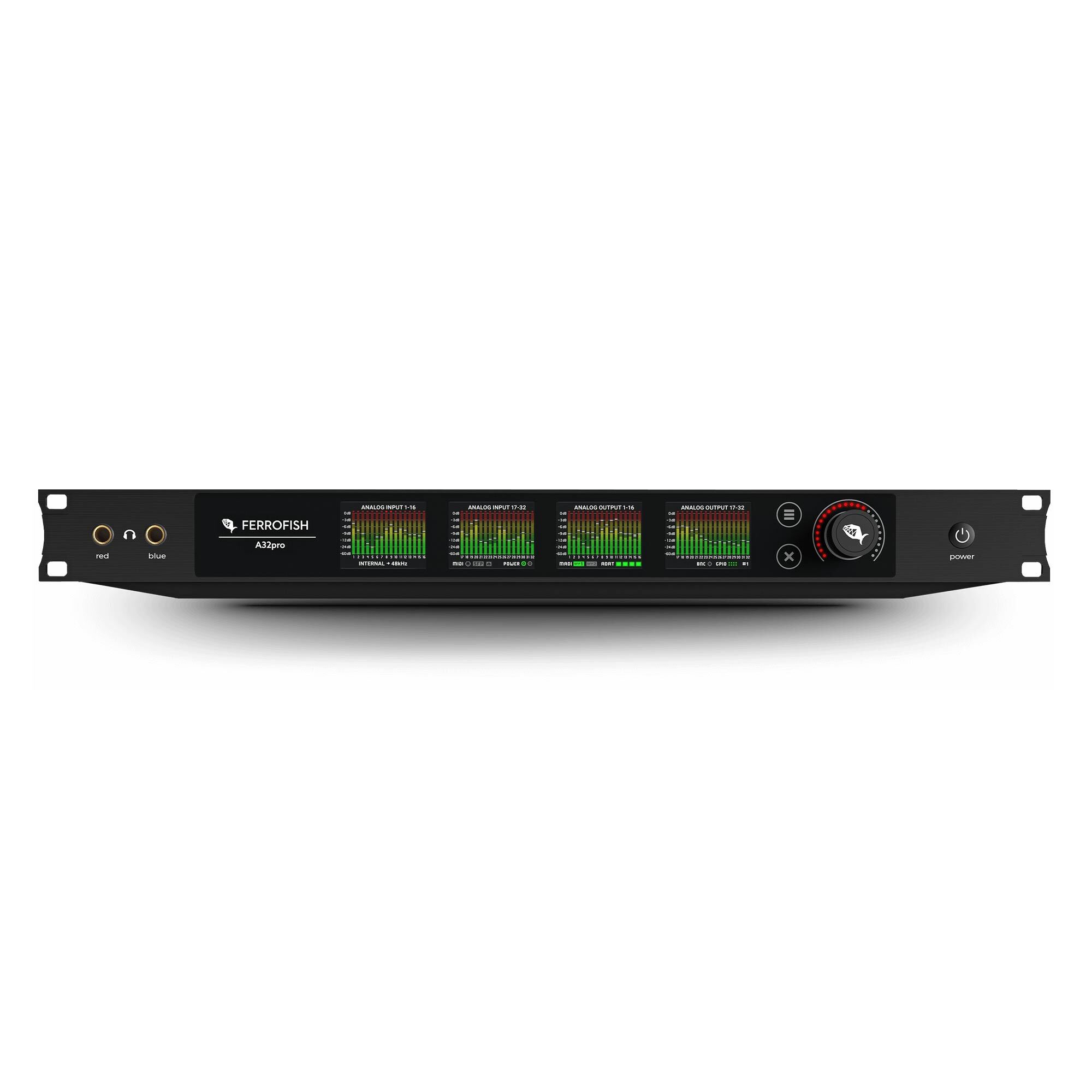

FERROFISH A32 PRO
32 x 32 A/D-D/A MADI ADAT Converter
Gravity Rigs has developed dedicated switching software for the A32 Pro that allows it to flip between two MADI inputs via a simple MIDI trigger. This means some of our designs can use the converter itself as the changeover point, eliminating the need for a separate hardware MADI switcher and reducing cost and complexity.
The A32pro is based on a new modular hardware platform and packed with analog and digital interfaces. In addition to the 32×32 balanced studio-quality analog inputs and outputs and the stereo main out up to 192kHz, the A32pro offers both ADAT and MADI – probably the most widely used digital audio interfaces available.
Delivered by UPS.
Price excl. VAT: £1,918.20
Including VAT: £2,301.84
In stock
In addition to the optical first MADI module, another SFP MADI module can be added. Different modes allow redundant operation of both interfaces: If one fails, the other one is activated automatically.
Speaking of redundancy: If desired, two power supplies can be connected to the device. All power supplies and interfaces are permanently monitored: In the event of a failure, an error message is output on the TFT screens and on the General Purpose Output (GPO) to connect it to additional hardware.
32
ANALOG I/O
32
ADAT I/O
64
MADI I/O
2
PHONES OUT
32
ANALOG I/O
32
ADAT I/O
64
MADI I/O
2
PHONES OUT

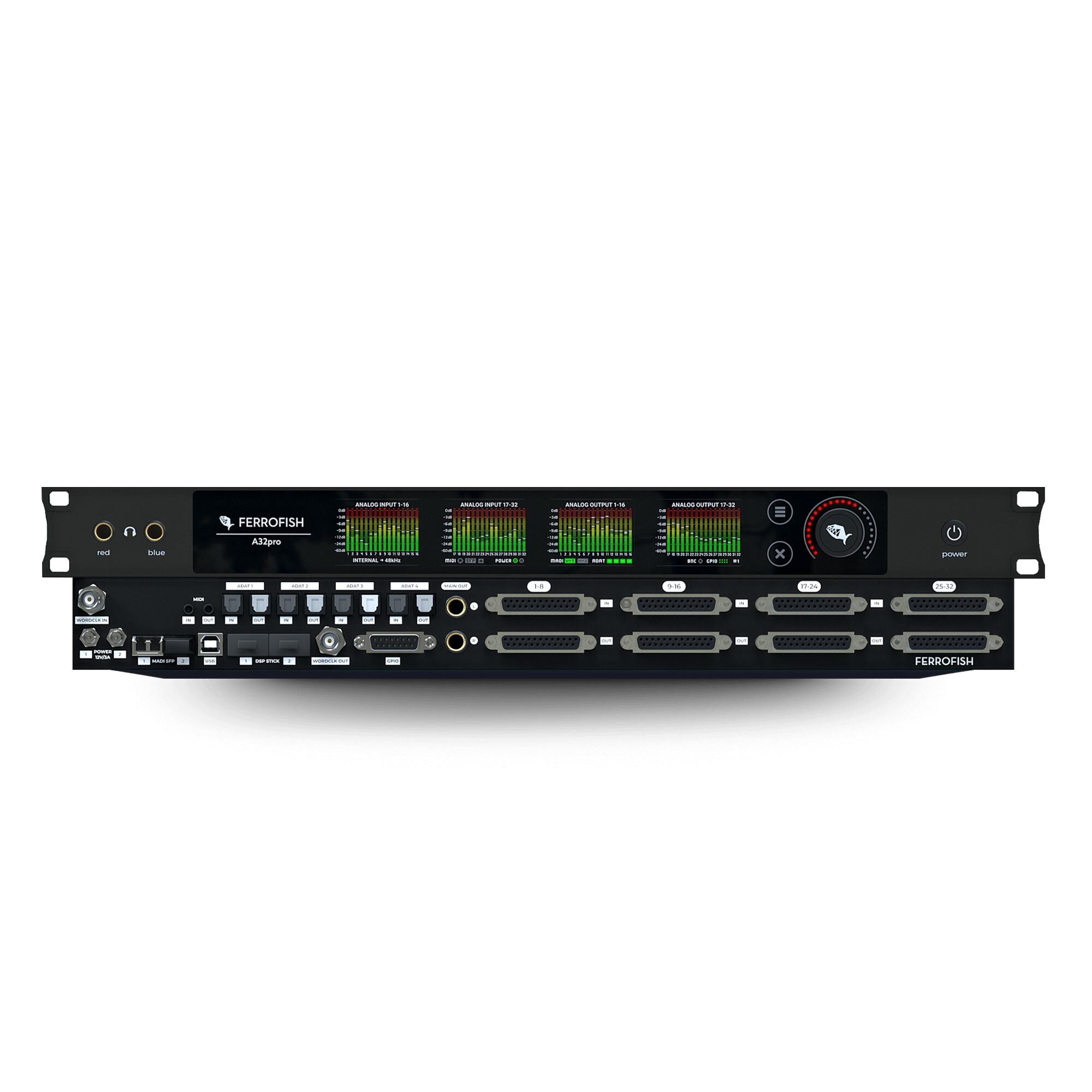

Packed into a compact 1RU, the highly integrated converter is equipped with 32 x 32 balanced analog channels, brought out on eight D-SUB connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps.
The sophisticated design, using the latest generation of ESS converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound up to 192kHz. The A32pro is not just a converter, but thanks to its flexibility, using a sophisticated routing matrix, it is also a digital format converter for integrating your exisiting and future MADI and ADAT equipment.
