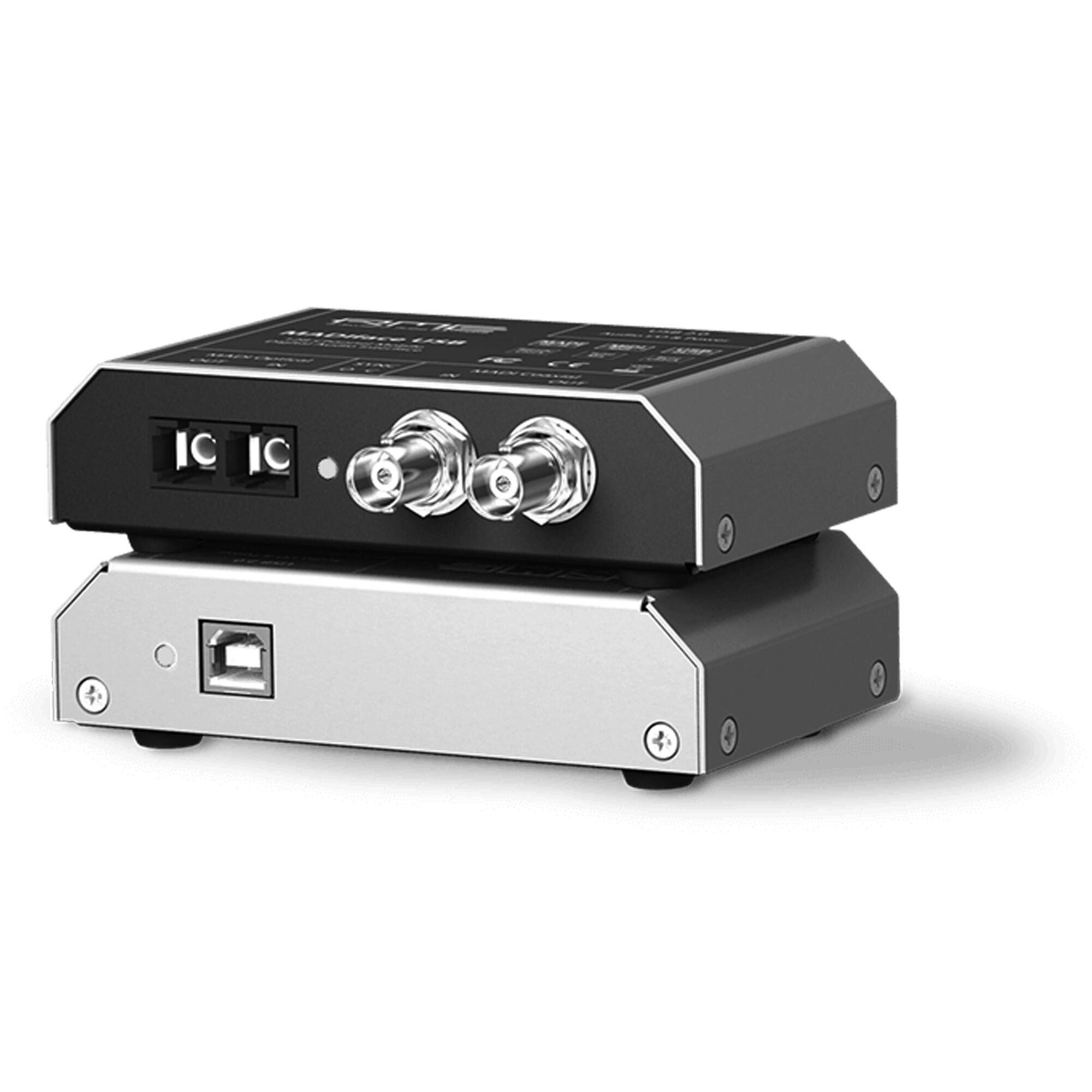

RME Madiface usb top shot

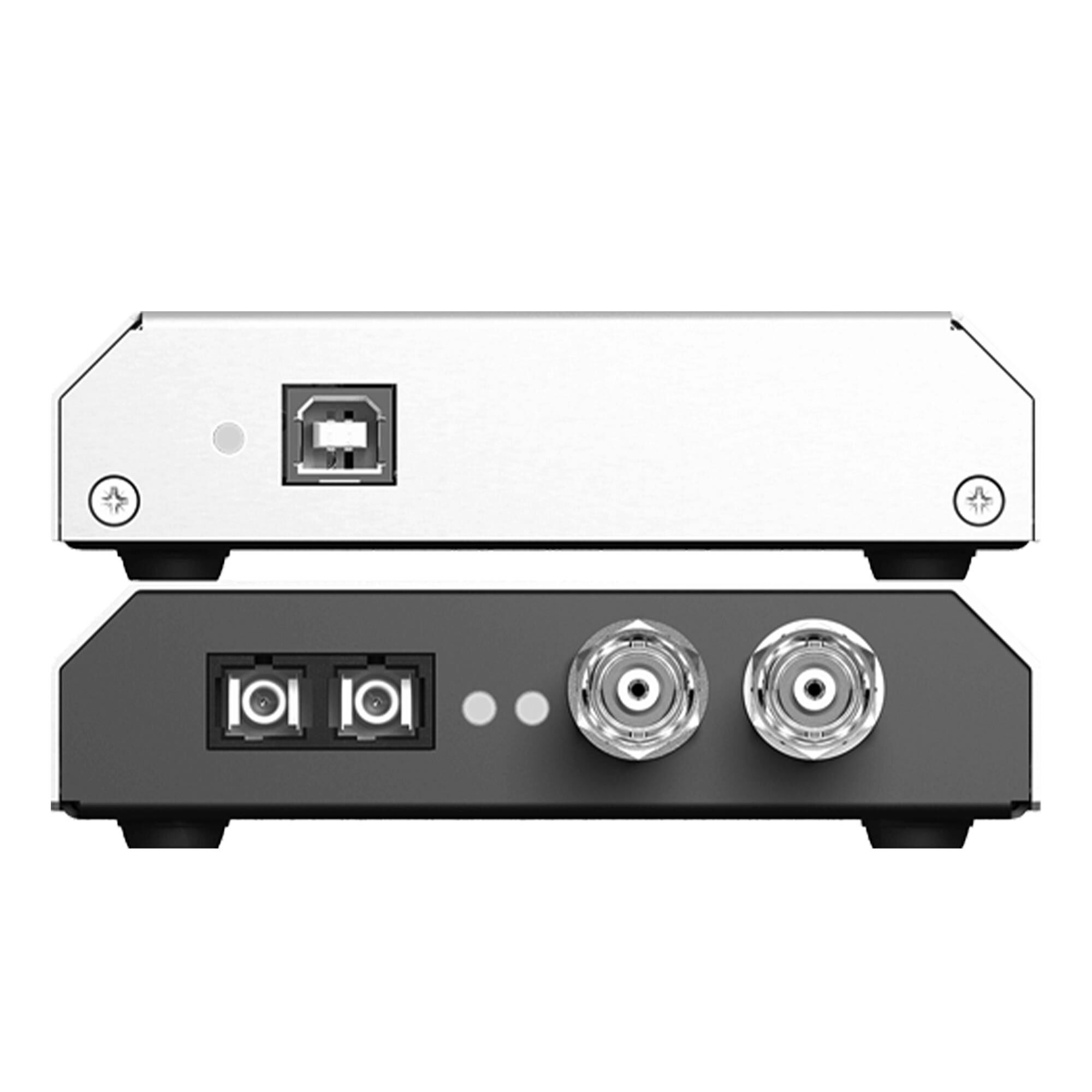

RME madiface usb end shot

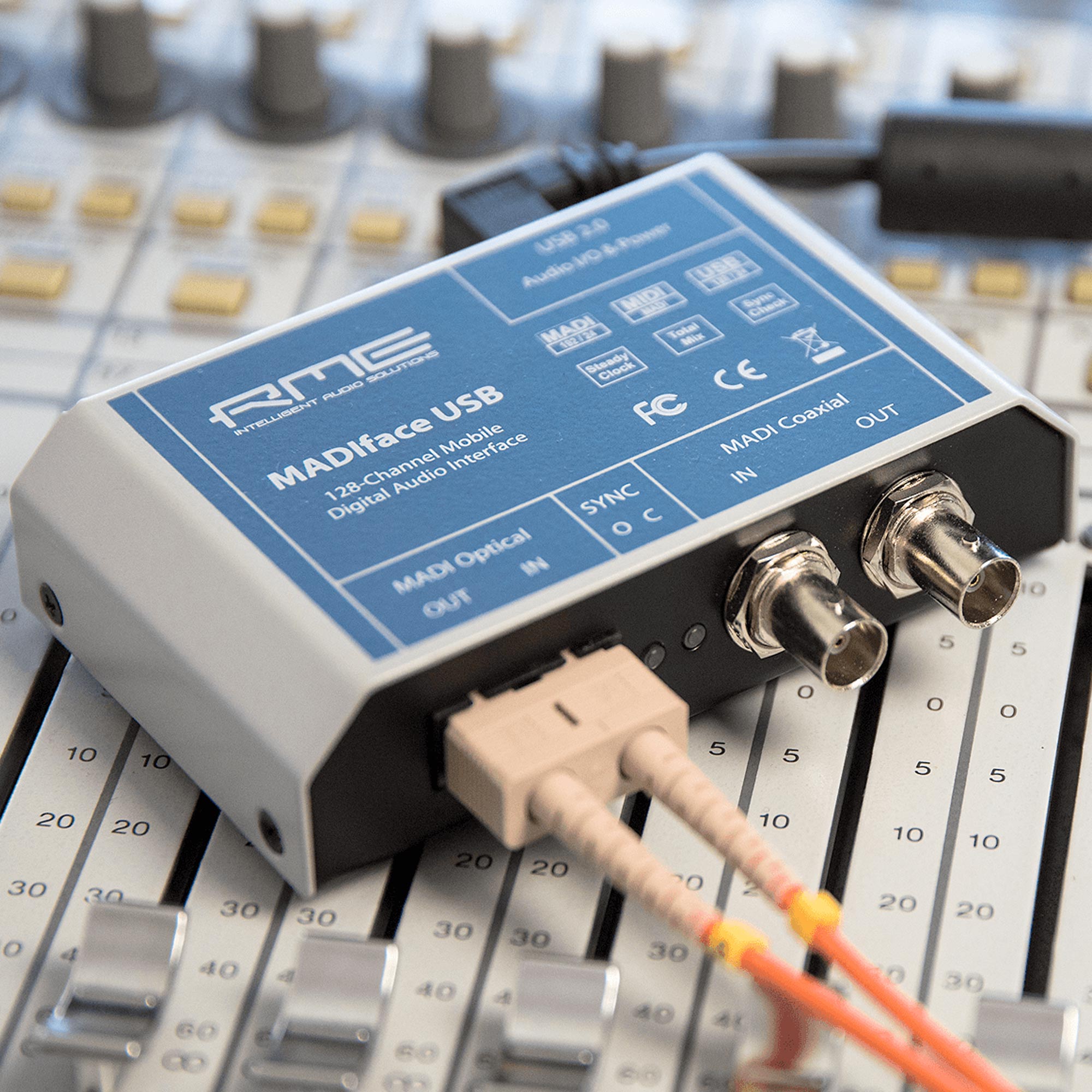

RME MADIFACE in use

RME Madiface USB

The RME MADIface USB is Gravity’s go-to compact MADI interface because its drivers are famously solid and keep working reliably through macOS updates, which is far from guaranteed with many audio interfaces. Its combination of robustness, price, footprint and flexible I/O makes it an exceptional choice for playback and touring, which is why it features so heavily in Gravity rigs.

The compact MADIface USB provides MADI I/O over USB 2.0 while supporting the format’s full 64 channels for recording and playback, under Mac and Windows. Both inputs can be used for full redundancy operation. Optionally both MADI I/Os can be operated simultaneously for full 128 channel input and output access, mixed and routed by TotalMix. Even without computer the small box delivers extraordinary bi-directional format converter and active repeater functionality.

Delivered by UPS.

Price excl. VAT: £582.97
Including VAT: £699.56

In stock

SKU: GR-RME-MF-USB Categories: , Tag:

Its sturdy and bus-powered design makes it as easy to use as reliable in operation. MADIface USB is both MADI portability at its best as also a perfect desktop solution to connect MADI equipment to any Mac and PC. A real gem in flexibility, usefullness and trouble-free operation – as you expect it from RME.

FEATURES AND OPERATION MODES

MADIface USB offers several operation modes when used with a Mac or Windows computer: 64 Channel Mix, Redundancy mode, 128 Channel Mix and a straight routing mode.

The option Disable TotalMix completely disables TotalMix, the unit's flexible internal mixer and routing matrix. All input and output data is going straight to record/coming from playback, with no mixing or routing involved. In this mode the outputs are mirrored, carrying the same signal.

In 64 Channel Mix mode TotalMix shows 64 input, playback and output channels. All settings in TotalMix use the data from one MADI input port, and send identical data to both MADI output ports. The currently active MADI input port can be configured in the Settings dialog.

TECH SPECS

  • Inputs/Outputs: 2 x MADI I/O, optical and coaxial (BNC)
  • MIDI input and output: via virtual MIDI port
  • Clock modes: master (internal) and slave (MADI input)
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS)
  • Jitter: < 1 ns, internal and all inputs
  • Jitter sensitivity: PLL operates even at 100 ns Jitter
  • Seamless Redundancy operation with both inputs
  • TotalMix: 2048 channel mixer with 48-bit internal resolution
  • TotalMix: latency-free submixes and perfect ASIO Direct Monitoring
  • Interface: USB 2.0, bus-powered
  • Comes with DIGICheck, RME's ultimate measurement, analysis and test tool
