RME Madiface XT II
The RME MADIface XT is Gravity’s preferred choice when a compact box isn’t enough and a full MADI hub is required, bringing the same famously stable RME drivers that stay reliable through operating system changes. With three independent streams of MADI plus analogue and MIDI I/O on board, it can cover primary playback, redundancy and additional routing or recording from a single unit, making it an extremely versatile core for complex touring and show setups.
RME presents the MADIface XT II a 394-channel 192 kHz USB 3.0 audio interface with comprehensive connectivity and control options for live and studio work.
Delivered by UPS.
Price excl. VAT: £1,538.73
Including VAT: £1,846.48
In stock
The successor to RME’s popular MADIface XT interface, the MADIface XT II features updated digital and analogue circuitry and surpasses the first generation with significantly improved analogue and digital performance.
The MADIface XT was the world’s first USB 3.0 audio interface at the time of its release – and impressed with its combination of an extremely high channel count, comprehensive connectivity and a compact desktop housing.

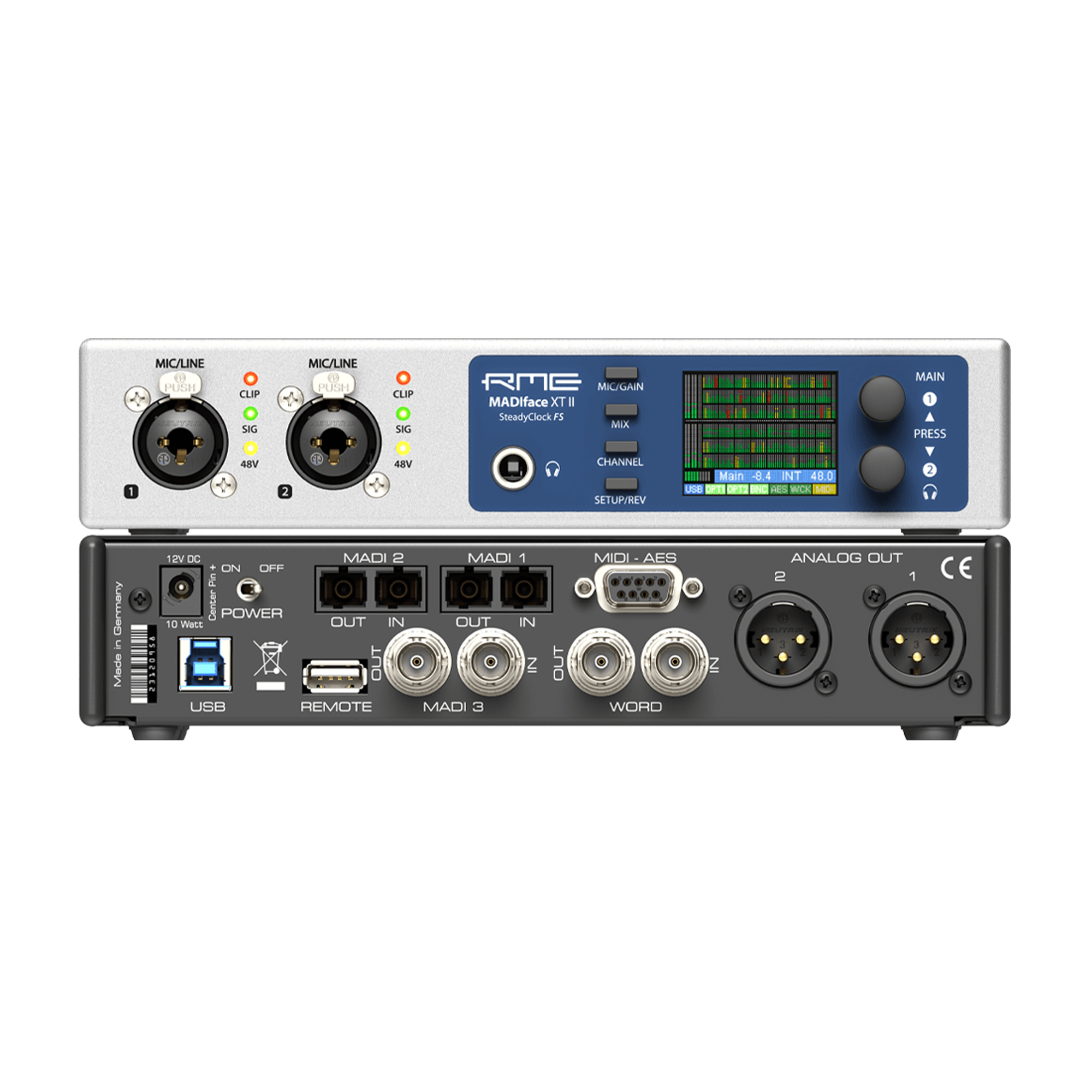

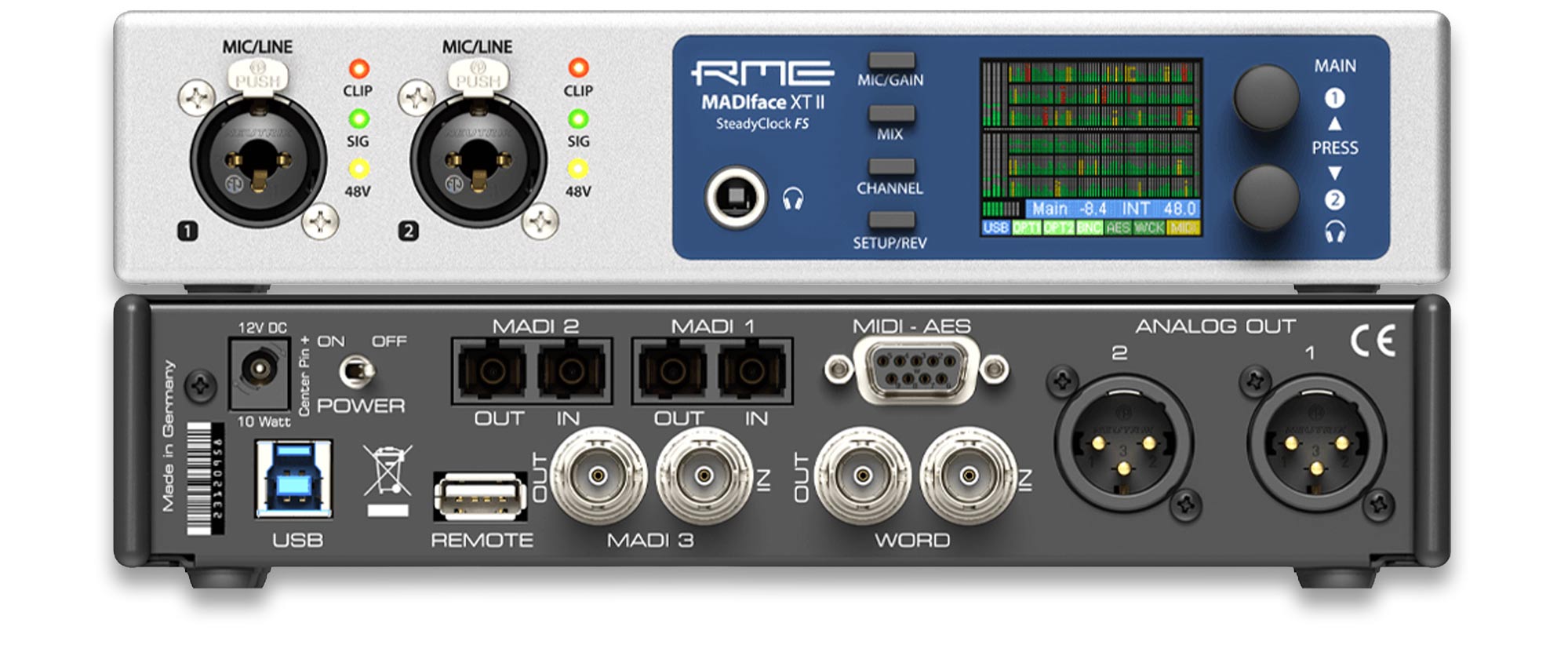

With two practical mic/line preamps (XLR/TRS combo inputs), two balanced XLR line outputs, a stereo line headphone output, a variety of digital signal options (MADI coaxial and optical, MIDI/AES, word clock), as well as an additional PCI Express connection, the MADIface XT left nothing to be desired in terms of connectivity.
196
INPUT CHANNELS
198
OUTPUT CHANNELS
3
MADI I/O
2
ANALOGUE INPUTS
196
INPUT CHANNELS
198
OUTPUT CHANNELS
3
MADI I/O
2
ANALOGUE INPUTS
With two practical mic/line preamps (XLR/TRS combo inputs), two balanced XLR line outputs, a stereo line headphone output, a variety of digital signal options (MADI coaxial and optical, MIDI/AES, word clock), as well as an additional PCI Express connection, the MADIface XT left nothing to be desired in terms of connectivity.
The second generation MADIface XT II maintains this successful formula and surpasses the signal values of its predecessor in numerous areas. Among other things, the MADIface XT II convinces with a higher signal-to-noise ratio and a lower THD value during AD conversion.
Furthermore, the maximum balanced line output level of the XLR line outputs has been increased from +15 dBu to +24 dBu. The stereo headphone output of the MADIface XT II also delivers a significantly higher output level of +19 dBu and, with an output impedance of 1 Ohm, significantly more power than its predecessor. All outputs also have several switchable level options.
